COMBUSTION CHAMBER MACHINING

燃焼室マシニングセンターフル機械加工

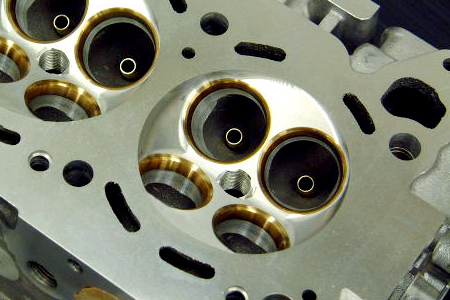

The combustion chamber is machined entirely with NC machines.
The variation in combustion chamber volume between cylinders can be kept to within 0.2cc.
Please specify the shape as you can select from the following three types.
(* The shape may not be selectable depending on the model.)

*Unit: \(JPY)
*The price does not include tax.

PRICE LIST
Shape RB26DETT SR20DET 2JZ-GTE 1JZ-GTE 4AG(4V) 4G63 Description
Full circle 60,000 50,000 Shape with the squish area completely removed
Hemi circle 60,000 50,000 Shape with one side squished
Full squish 60,000 50,000 60,000 60,000 50,000 50,000 Shape that makes use of the normal pent roof
COMBUSTION CHAMBER CAPACITY
Shape RB26DETT SR20DET 2JZ-GTE 1JZ-GTE 4AG(4V) 4G63 Description
Normal 65cc 46~47.5cc 44~46cc 41.5cc 37~38cc 46cc
Full circle 71cc 51cc Shape with the squish area completely removed
Hemi circle 70.3cc 50cc Shape with one side squished
Full squish 69.5cc 47.3cc 43cc 39.5cc 47.5cc Shape that makes use of the normal pent roof

Unlisted Models :

  • Nissan SR20VE JPY 50,000  Full circle shape / 47cc volume
  • Nissan VR38DETT JPY 75,000  Full squish shape only
  • Nissan VG30DETT JPY 60,000  Full squish shape only
  • Mazda B6 / BP JPY 50,000  Full squish shape only
